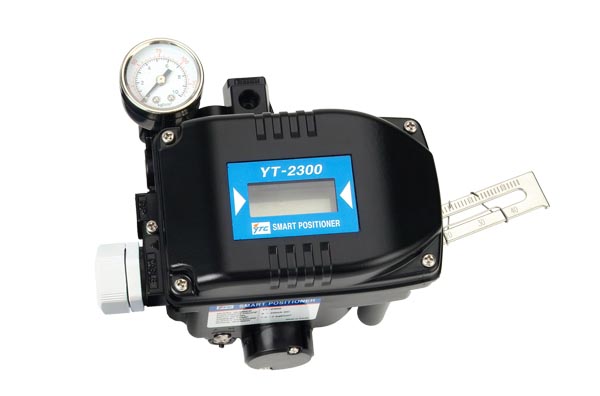

YT-2300
Smart Valve Positioner accurately controls valve stroke, according to
input signal of 4-20mA, which is being input from the controller. In
addition, built-in micro-processing operator optimizes the positioner's
performance and provides unique functions such as Auto calibration, PID
control, Alarm, and Hart protocol.
1. LCD display enables users to monitor the status of the positioner.
2. The method of Auto Calibration is very simple.
3. Variable orifice can minimize the hunting occurrence and optimize
operating condition.
4. A/M Switch can change the flow of the pressure, whether to send
directly to actuator or to operate by positioner.
5. Maintenance of the positioner is easy because of
modularized inner structure.

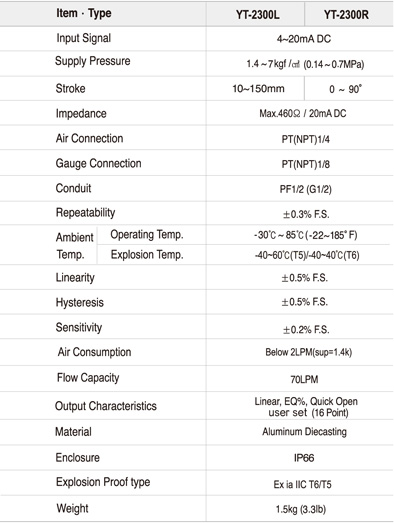

Specifications
|
|
Catalog |
|
Manual |
|
Certifications |
|
Approval
Drawing |
|
Wiring
Diagram |
|
Installation |
|
Trouble
Shooting |
|
|
